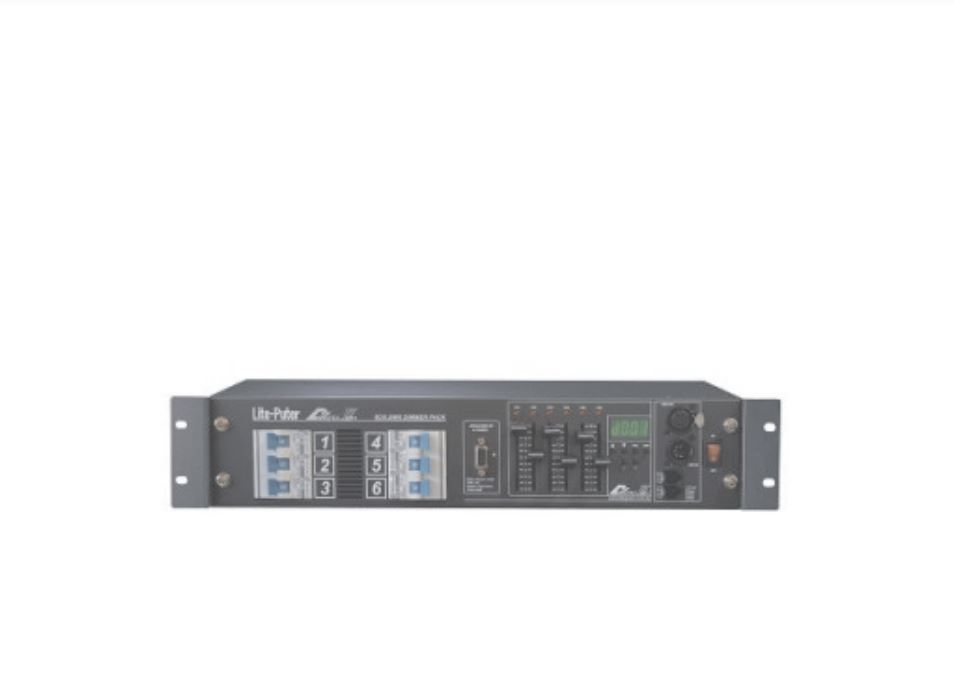

DIMMER DX-626AII 6 CHANNEL 20A DMX LITE-PUTER POWER PACK
DX-626 is a 6 channels DMX dimmer pack. Its curved line dimmer guarantee the accuracy of any scale effects adjustment fader. Each channel provides exit 20A. DX-626 has a fan Thermocontrolled that will be automatically activated when the temperature is above 35°C (95°F). 6 channels are removable and the possibility of autotest without controller dmx. In addition DMX input, it also has analog 0-10VDC.
Specifications:
- Control: DMX-512 (IN/OUT XLR 3-5 poles, IN RJ11), analogue 0-10V DC (IN D-Type 9 Pin)
- Output connection: terminal board
- Independent selection of dimming curves for each channel
- Warm-up function for protection of loads (adjustable warm-up: 0%-6%)
- Funzione di pre-riscaldamento per protezione dei carichi (warm-up regolabile 0%-6%)
- Settings and electronics control through LCD display and front keys
- Temperature sensors for automatic adjustment of ventilation and protection
- Auto-tracking of frequency and phase allowing stable dimming output under different frequencies
- Auto-tracking di frequenza e fase per regolazione automatica dell’output in presenza di frequenze non omogenee
- Automatic test function with no console connected
- Protection: 2P magnetic circuit breakers
- Power: AC 90-240V, 45-63 Hz, 3Ø4W
- Rack units: 2U
- Dimensions (WxHxD): 482x88x312 mm.
- Weight: 8 Kg.
