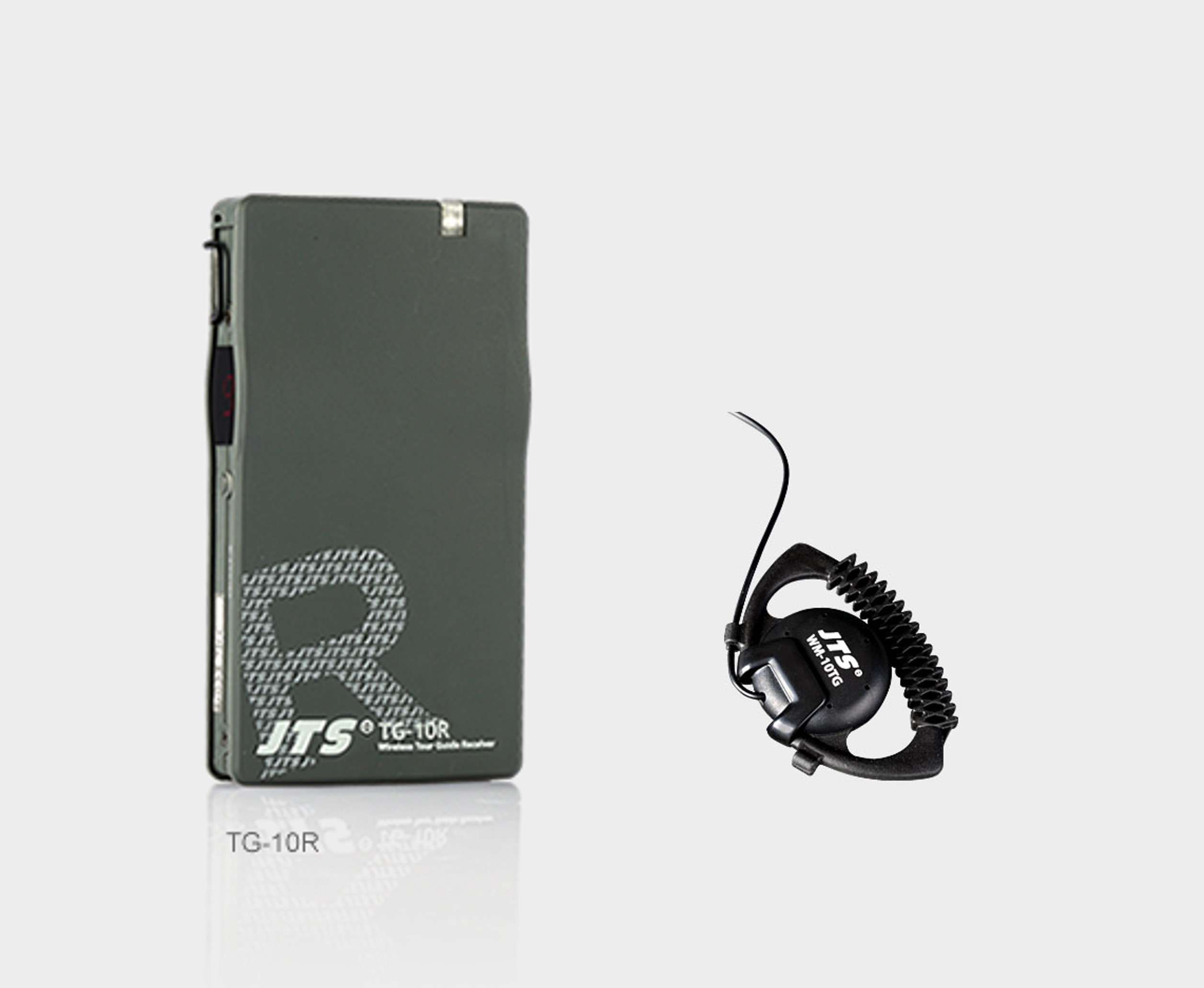

TG-10R/WM-10TG
* Handy and fashion outward.
* Preset 16 selectable UHF channels.
* Using Lithium cell to provide long operation time.
* Transmitter with built-in condenser capsule.
* LED display on both transmitters and receivers.
* Belt-pack and neck-set wearing.
* Earphone WM-10TG for TG-10R
* 60m operation distance.
*Handy feature, broad angle ear set with ergonomic design ensures comfortable wearing.
* Audiophile quality semi closed, dynamic headphone.
* Powerful neodymium-ferrous rare earth magnet system.
* Lightweight copper-clad aluminum voice coils.
* The cord is terminated with a gold-plated Ø3.5 dummy stereo phone plug.
* Super thin 21mm dynamic driver with neodymium magnet structure provides crystal clear sound.
SPECIFICATIONS
| TG-10R | |
| Model | TG-10R |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| 3x Frequency Range | 856.100 – 864.900 MHz (F band) 606.500 – 629.900 MHz (U band) 721.500 – 748.375 MHz (G band) 658.125 – 678.500 MHz (D band) 487.125 – 506.500 HHz (I band) 502.000 – 694.000 MHz (T band) |
| LED Display | Channel |
| Controls | Power On/Off Channel selection Voiume control |
| Audio Frequency Response | 40~18,000 Hz |
| Output connector | 1/8” Dummy stereo Phone Jack |
| Battery life | 14 hours typical |
| Battery | Lithium cell (3.7V, 1300mAh) |
| Dimension(mm) | 54mm(W)* 17mm(D)* 99mm(H) |
| WM-10TG | |
| Drive Unit | Super thin dynamic driver with neodymium magnet |
| Frequency Response | 0~15,000 Hz |
| Impedance | 32Ω |
| Sensitivity(at 1000Hz) | 126 dB/mW |
| Max. Input power | 0.2W |
| Input Connector | Gold-plated Ø3.5 dummy stereo phone plug |
| Weight | 15.2 grams |
