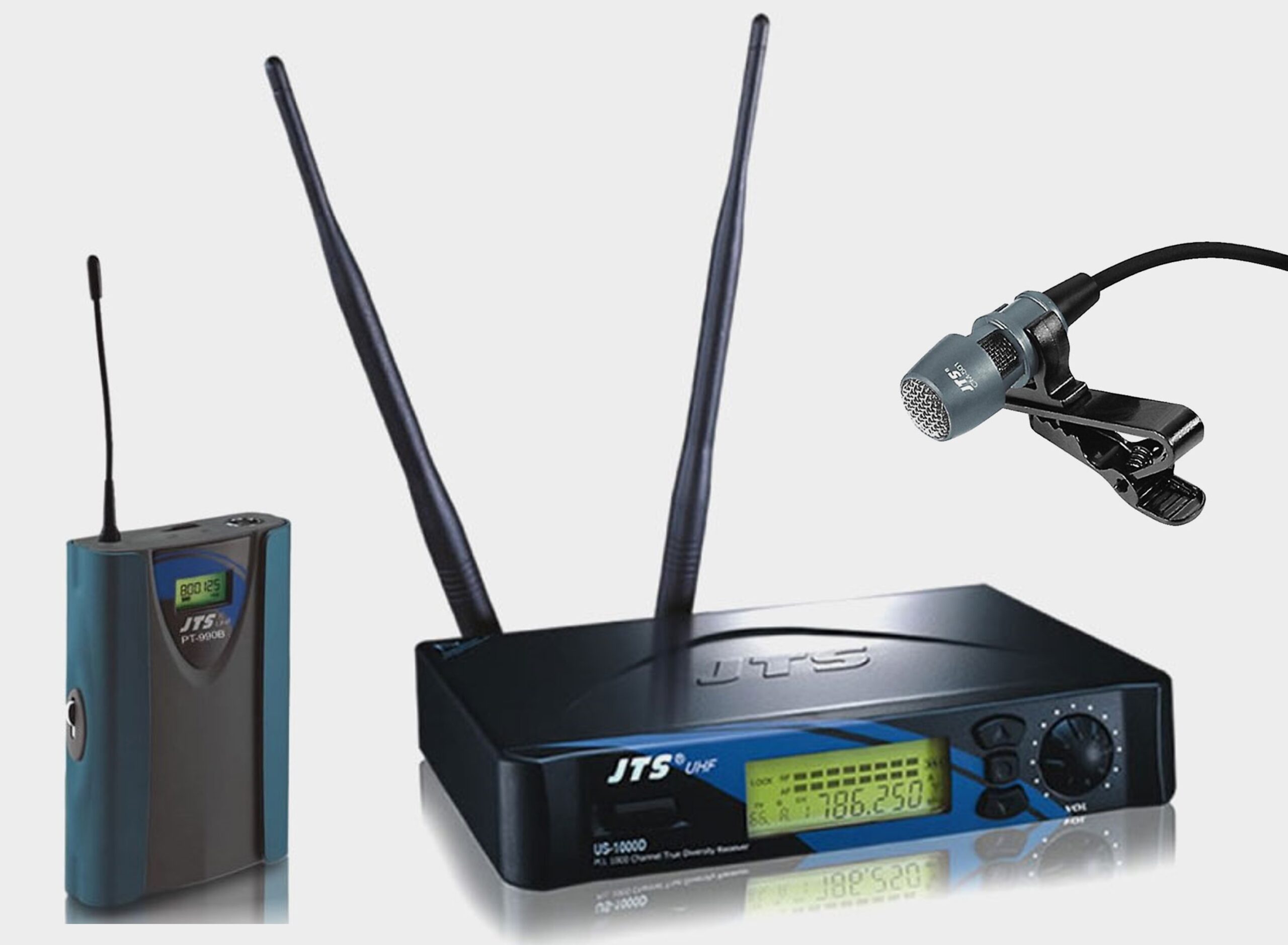

US-1000D, PT-990B & CM-501



Single Transmitter operation. PLL synthesized technology with 961 selectable UHF channels.
Preset 4 groups each of 16 UHF channels. True diversity technology prevents RF dropouts.

Equipped with S.A.W. filter for interference free operation. Built-in ,noise mute and tone-key squelch. Lock-on» mode avoids accidental changes of frequency, sensitivity and power-off.
Balanced XLR output and unbalanced 6.3mm (1/4”) output. Tuned antennas for the most stable RF reception. Compact half rack space design with metal receiver housing.



GENERAL SPECIFICATIONS



US-1000D

US-1000D
Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
S/N Ratio	>105dB
T.H.D.	<0.6%@1KHz
Display	LCD
Display Contents	Frequency, Antenna A/B, Mute Display, RF/AF Level Meter, Battery Fuel Gauge
Controls	Power On/Off, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on
AF Output Impedance	600Ω
Squelch	Pilot Tone & Noise Mute
Operation Voltage	12-18 VDC, 250mA
Output Connector	1 XLR Balanced Socket 1 Ø6.3mm unbalanced phone jack
Dimension(m/m)	212mm(W) * 40mm(H) * 137mm(D)















PT-990B

PT-990B
Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	10mW
Stability	±10KHz
Frequency Deviation	±48KHz
LCD Display	Frequency, Battery Fuel Gauge
Controls	Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode
Spurious Emissions	<-50 dBC
Audio Frequency Response	40~18,000 Hz
Battery	Um3, AA 1.5V*2





































 CM-501

CM-501
Connector	4P Mini XLR
Frequency Response	100~15,000 Hz
Polar Pattern	Cardioid
Sensitivity (at 1KHz)	-60±3 dB* (1mV)*0dB=1V/μbar
Impedance	2.2kΩ
Max. SPL for 1% THD	130dB
Dimension (mm)	Ø10.1mm(W)*  26.4mm(H)
Net Weight	21.5g
